Manufacturer HVAC System Liquid Tank H13 H14 U15 Cleanroom Top Side Gel Seal Mini Pleat HEPA Filter & ULPA Filter

FOB Reference Price:Get Latest Price
$10.00 - $50.00 / Piece | 1 Piece/Pieces (Min. Order)
Filtration Grade:
Hepa Filter Ulpa Filter
Medium Material:
FiberGlass Synthetic Fiber Other
Lead Time:
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 200 Pieces)
Customized packaging (Min. Order: 200 Pieces)

More

Graphic customization (Min. Order: 200 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hospitals, Cleanrooms, Non-dust rooms, etc.
After Warranty Service:
Video technical support, Online support, Spare parts
Local Service Location:
none
Showroom Location:
none
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1.5 years
Condition:
New
Efficiency:
H13 H14 U15, 99% - 99.99999%
Construction:
Panel Filter
Porosity:
No
Place of Origin:
Guangdong, China
Brand Name:
Jielv
Dimension(L*W*H):
Customizable
Weight:
As per model
Certification:
ISO9001
Warranty:
1.5 years
After-sales Service Provided:
Online support
Frame:
Stainless steel, aluminum alloy, galvanized plate
Media:
Filter cotton, glass fiber, synthetic fiber, polyester
Temp. Resistance:
≤100 ℃
Separator:
Hot melt adhesive
Sealant:
AB component glue
Protection mesh:
Diamond metal paint sprayed
Operating Temperature:
≤70℃
Humidity:
≤100%RH
Max. Final Pressure:
≤600Pa
Core Components:
Filter media
Supply Ability
Supply Ability:
2000 Unit/Units per Month
Packaging & Delivery
Lead Time :
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 15 To be negotiated
Product Description

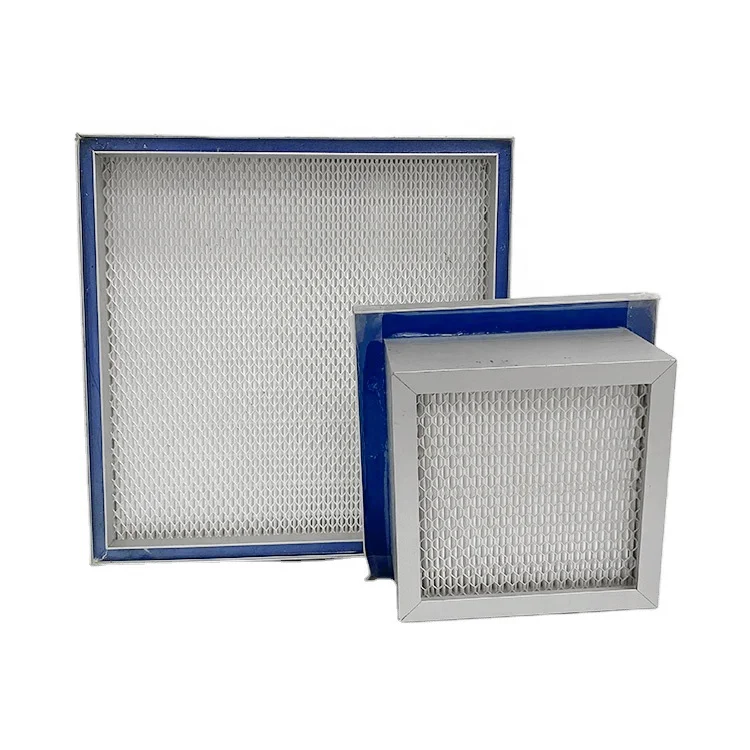

Gel Seal HEPA Filter & ULPA Filter adopt the liquid sealed technology and is a kind of method better than the commonly used seal mechanical pressing device. The Gel Seal is easily to be installed. The seal is very reliable, so its terminal filtration effect is better than ordinary products. It can be used in advanced filtation of air conditioning and ventilation system in the central air conditioning and ventilation system, such as microelectrnics, semiconductor, pharmaceutical, chemical, food and other clean areas of ventilation system end.
Product Type
Gel Seal HEPA Filter & ULPA Filter
External Frame
Aluminum alloy, stainless steel, galvanized plate
Filter Material
Ultrafine fiberglass, filter cotton, synthetic fiber, polyester
Separator
Hot melt adhesive
Sealant Glue
AB component glue
Liquid Tray Glue
Long-lasting glue
Filtration grade
H13, H14, U15, U16, U17 (EN779)
Filter efficiency
99%, 99.9%, 99.99%, 99.999%, 99.9999%, 999999%
Porosity
≥0.5μm, ≥0.3μm, ≥0.1μm
Resistance to temperature
≤80℃
Instantaneous temperature resistance
≤100℃
Humidity
≤100%RH
Dimensions (mm)


Related Air Flow (m/h&Pa)
Initial pressure drop (Pa)


Filtration Efficiency
W
H
D

0.25m/s
0.5m/s
0.75m/s

450
450
90/93
500



≤120



≤220



≤240

99.99%
99.999%
99.9999%
99.99999%
610
610
90/93
1000




915
610
90/93
1500




1220
610
90/93
2000




Customized specification is available as requirement.
In most occasion, the side liquid tray can be 90mm, while top liquid trap thickness can be 93mm.







JIELV air filters use high quality filter element to trap the airborne dust and dirt, including particles as small as a grain of sand and provide longer lasting engine protection.

See More Hepa Filters
Jielv HEPA (high-efficiency particulate air) filters are designed for the air intake and extract systems of critical applications where high efficiency filtration is necessary. They are available with efficiencies between 95% and 99.999% (H10-H14 upto U17).

Pre-filters typically need to be cleaned or replaced on a monthly basis, but HEPA filters have a longer lifespan of 12-18 months.

Click the products below to know more: (Pls feel free to contact us if you have any questions!)
Applications
1) Air condition system.
2) Ventilate system.
3) Exhaust gas filter in paint exhaust system on the floor of dry spray booth.
4) Avoid tar room and dust from high-temperature dryer.
5) Clean room, cleaning equipment.
6) FFU.
7) Pharmaceutical factory,hospital, electronic factory food factory.
8) Car production line development.
9) Ultra-clean high-temperature oven.
10) Car spray paint baking temperature applications.
11) Chemical, food factory etc industries.
Certifications
Hot Products
FAQ
Q: Why choose JIELV?
A: Guangzhou Jielv Environment Technology Co., Ltd. is famous for high-tech filtration, separation and purification, committed to provide the highest quality filtration products to meet worldwide customers various needs with excellent service. On the basis of the powerful technical force, standard testing equipment, strict quality-controlled systems and the excellent after-sales services, we won the trust and good remarks of a numbers of customers because of the high quality and reasonable price.
Q: Are you trading company or manufacturer?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: Do you support OEM made?
A: OEM is warmly welcomed, we can arrange your own color or label,print your OEM package,and make your own shape according to your drawing.

Q: How's the after-sale service?
A: We’ll take photos for your check before loading container and confirm all of documents within 48 hours after shipment.For any other supplier order,you just ask them to deliver us for combine container,we’ll do this favor to arrange everything very well.

Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
