Hepa Fan filter Unit/FFU for Cleanrooms Ceiling air Filtration Unit

  • 1 - 999 Units
    $100.00
  • >=1000 Units
    $10.00
Model Number:
JLAF1H
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Jielv
Weight:
Negotiable
Certification:
ISO9001
Efficiency:
99.99%@0.3um ~ 99.999%@0.3um
Construction:
Other
Filtration Grade:
Hepa Filter
Medium Material:
domestic glass fiber filter proposed or HV filter paper
Porosity:
No
Dimension(L*W*H):
Customized Size, 1225*1225*320mm or Other Sizes
Air flow:
1000-2000m3/h
Max. operating temp.:
80℃
Noise Db(A):
≤57dB
Humidity:
80%RH
Motor:
220V 50Hz, 1phase
System control mode:
AC and DC
Wind speed:
0.4-0.8m/s can adjustable
External frame:
stainless steel or Galvanized steel with aluminum painting
Fan:
low vibration, low noise, imported or domestically fan
After-sales Service Provided:
No overseas service provided
Warranty:
1 Year
Supply Ability
Supply Ability:
1000 Unit/Units per Day
Packaging & Delivery
Packaging Details
Packaging Details: Carton packaging for each ffu.
Delivery Detail: About 3 weeks after deposit.
Port
Guangzhou
Products Description
product Name

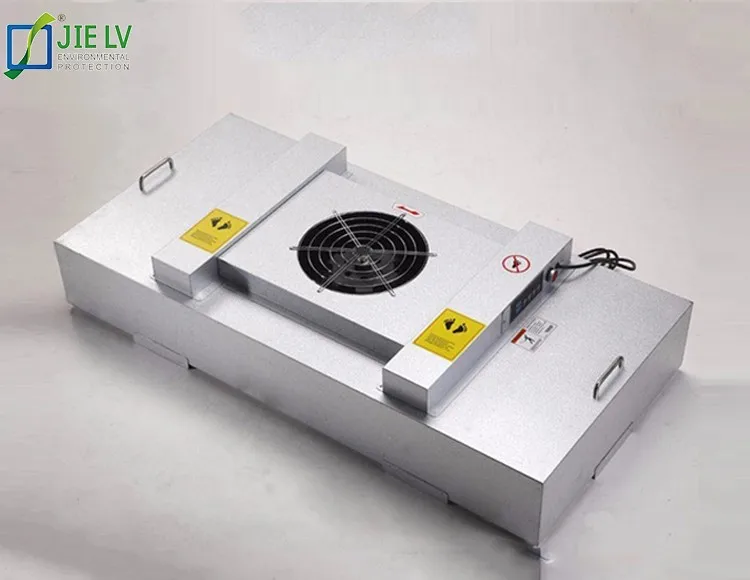

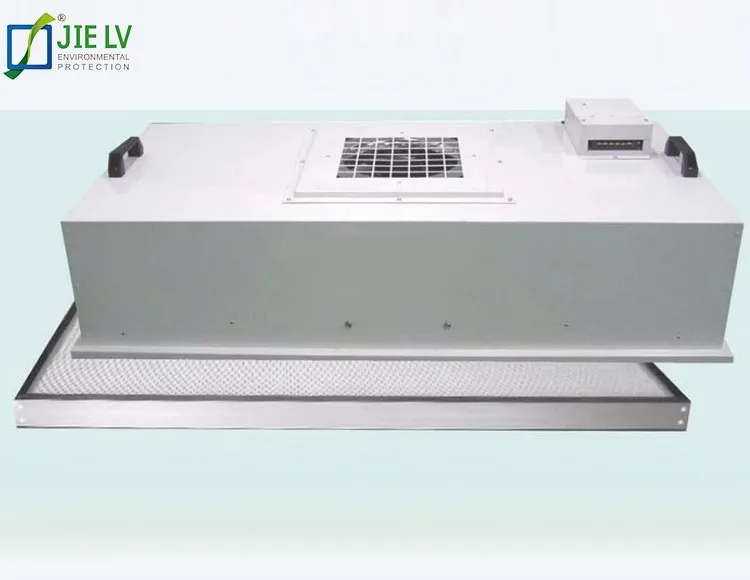

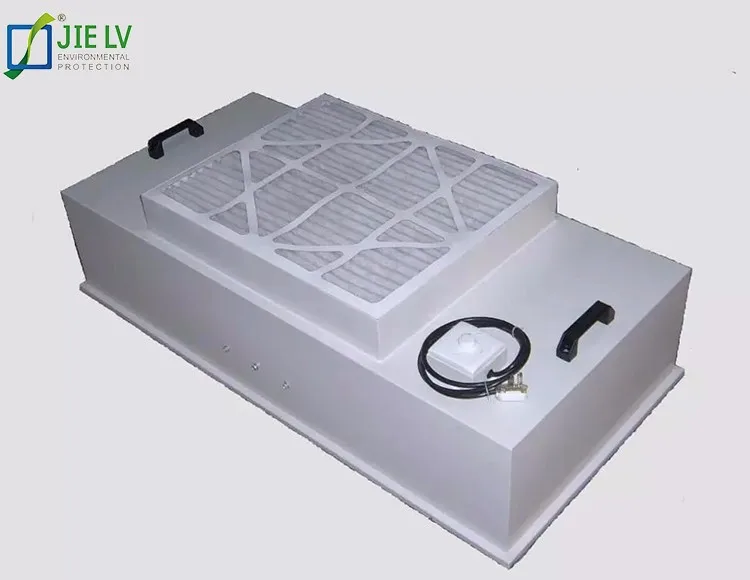

Fan  Filter unit with Hepa Filter for cleanroom
External frame
stainless steel or Galvanized steel with aluminum painting
Fan
low vibration, low noise, imported or domestically fan
Media
domestic glass fiber filter proposed or HV filter paper
Wind speed
0.4-0.8m/s can adjustable
HEPA efficiency
99.99%@0.3um ~ 99.999%@0.3um
Air flow
1000-2000m³/h
System control mode
AC and DC
Max. operating temp.
80 degree Celsius
Humidity
80%
Noise Db(A)
 ≤57dB
Motor
220V 50Hz, 1phase

♦ Product Overview

FFU it has work long hours, low noise, maintenance-free, small vibration, variable speed adjustment, air velocity uniformity and easy installation and other characteristics .
FFU modular structure design, making FFU are widely used in clean rooms, clean desk, clean lines, locally 100 clean class area of the clean room and other applications. FFU has pre-filter, HEPA filters. Fan absorb the air flow from the top of the FFU and filtered by the pre-filter, then HEPA filter, filtered clean air at 0.45M / S ± 20% uniform sent. It provides high-quality clean air for different sizes, different clean class levels of clean room micro-environment. In the new built clean room, clean room renovation can improve the clean levels, reduce noise and vibration, and also can greatly reduce the cost, easy installation and maintenance, is an ideal component of a clean environment.


♦ Features
1. Low operating cost, convenient use
2. Unique low vibration, low noise
3. Adjustable speed
4. Fan box and filter fission, easy replacement

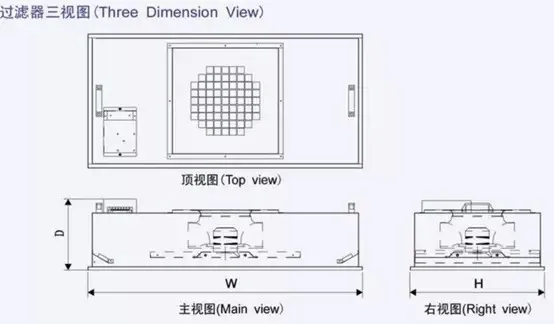

Dimension (mm)L*W*H
1225*1225*320
1175*1175*320
1175*575*320
575*575*320
Rated air flow (m³/h)
2000
1800
1000
500
Noise Db(A)
≤55dB
Filter efficiency
99.99% ~ 99.9995%(≤0.3μm)
Power
AC220V, 50HZ/ DC220V, 50HZ
Input power (W)
150
150
115
115
Filter size(mm)
1220*1220*69
1170*1170*69
1170*570*69
570*570*69
Customized design is available for Price Fan filter Unit / FFU for Clean rooms.

Jielv filter produces the head fan filter unit, which takes the domestic newest technology, suitable for 100, 000-1000 magnitude environment and obtain the highest grade of clean environment 100. It is different for different size, cleanliness level of clean room micro-environment, clean bench, clean production, the assembly type clean room and laminar covers and other applications high-tech and humanization of computer software system, also can design according to clients' requirements for additional monitoring system. Particularly suited to assemble line, can be formed many series of 100 level assembly line.

♦ Application:
HEPA filters are extensively used in the final filtration of the civil or industrial cleaning places in the industries such as electronics, semiconductor, precision machinery , pharmaceutical, hospital and food processing, etc., Which require relatively high level of cleanliness.
More Products
About Jielv Filter

JIELV Filter is a professional manufacturer of filtration system who has its own sales and production department.
The products have widest applications. The typical applications are Microelectronics, Biopharmaceuticals, Medical, Food and Beverage, Fuels, Petrochemical, Chemical, and Automotive industries.
Our products and services have won the confidence of worldwide customers. Our customers come from: China, Canada, USA, Europe, Australia, New Zealand, Malaysia, Thailand and South Africa.
Base on comprehensive process knowledge, we can provide variety of different standard filter products, not only supplying standard filtration for customer's selection, but also designing and manufacturing special ones according to customer's requirements. We are a high-tech company focusing on quality and with competitive prices.

Office

Jielv Office

Team

Jielv Team

Meeting room

Jielv Meeting room

Workshop

Jielv Workshop

Our Certifications
Contact Jielv Filter
Name
Shelly
Mobile/ WhatsApp
86 150 1845 7132
Fax
86 020 3788 9066
Skype
Shelly0258
Website
www.jielvfilter.com
Add
Room 406, D Block, Kehui Park, Daguan Middle Road 95, Tianhe District Guangzhou City, China.
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
