High efficiency micron nylon mesh liquid filter bags

FOB Reference Price:Get Latest Price
$0.25 - $3.00 / Bag | 1000 Bag/Bags (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Jielv filter
Model Number:
JL-FB1
Type:
Mesh Filter Bag
Usage:
Liquid Filter
Material Of Bag:
Nylon
Material:
Nylon
Bags Size:
1#,2#,3#,4#,5#
Micron rating:
10~500 mesh
Keyword:
Liquid filter bag
Type of bottom:
R(round). V( Triangle)
Ring Material:
S(stainless steel). Z(Zinc Steel).P(Plastic)
Body construct:
S(Sewn)
Custom service:
OK
Supply Ability
Supply Ability:
10000 Bag/Bags per Week
Packaging & Delivery
Packaging Details
Carton box packing 50 pieces/box 640mm*460mm*420mm for filter bag
Port
Guangzhou
Product Description

Standard mesh filter bags sizes:

Item
Max.Flow(m³/h)
Filter Area(m²)
Diameter(inch)
length(inch)
mm
#1
20
0.25
7″
17″
180X450
#2
40
0.5
7″
32″
180X810
#3
6
0.09
4″
9″
105x230
#4
12
0.16
4″
15″
105X380
#5
18
0.22
6″
20"
155x500
Material
Nylon
Bag top ring
Plastic ring , Stainless steel ring, Zinc Steel
Filtration micron
10, 25, 50, 100, 200 ,300, 400, 500 mesh
Type
various specifications
Airtight method
Reverse sewing
Effective filtration are
various specifications
Others
special requirement of diameter and collar extension can be customized

JIELV STANDARD MESH LIQUID FILTER BAGS
MONOFILAMENT & MULTIFILAMENT MESH FILTER BAGS:
. Micron ratings from 5 to 1000
. 11 industry standard sizes
. High flow - low pressure drop media
. Washable and reusable
. Non-fiber releasing media
. Sewn construction
. Handles on all bags
. Choice of metal ring tops or molded Super Seal tops


Applications of Standard mesh filter bags:
1. Paints & lacquer industry
2. Wastewater treatment
3. Pharmaceutical industry
4. Food industry
5. Chemical industry
6. Beer, wine & spirit industry
7. Adhesive.

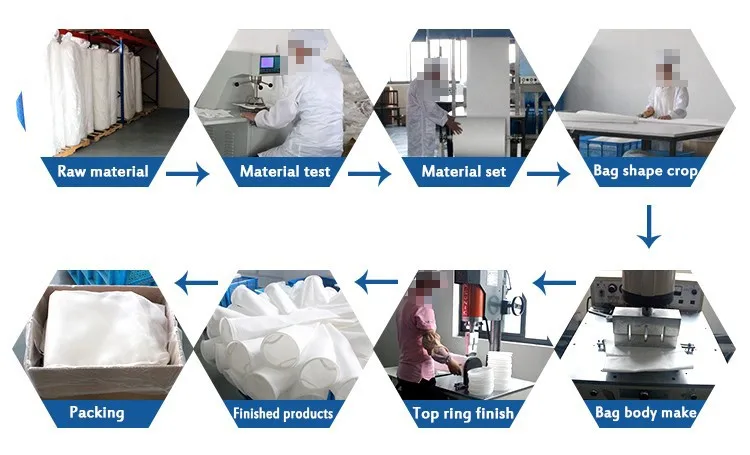

Production Process
Packing & Delivery
About Jielvfilter


Guangzhou Jielv Environmental Protection Co., Ltd. is famous for high-tech filtration, separation and purification, committed to provide the highest quality filtration products to meet worldwide customers various needs with excellent service.

Main Products
We have been meeting global demand with our high quality products & best possible technical support to our End-user, OEM/ODM customers. Our main business covers from liquid filtration filters: PP Melt Blown Filter Cartridges, String Wound Filter Cartridges, Membrane Pleated Cartridges, Activated Carbon Filters, Filter Bags and Filter Housing etc.; and dust filtration air filter bags: PP, Polyester, Polyester Antistatic, Polyester Waterproof & Oil Repellent Antistatic, PPS, Aromatic Polyamideimide(P84), Acrylic, Nomex, Glass Fiber, FMS, PTFE needle felt air filter bags etc., which have been widely applied into fields of Process, Pharmaceutic, Desalination, Food & Beverage, Pool & Spa, Cement Plant, Coal Fired Boiler, Iron Works, Metallurgic Plant Gas and Liquid Filtration Industrial etc....

Main Market
On the basis of the powerful technical force, standard testing equipment, strict quality-controlled systems and the excellent after-sales services, we are striving for the more new and suitable products for the customers and the market. We won the trust and good remarks of a numbers of customers because of the high quality and reasonable price. We sale 40% filters in China mainland and export 60%, oversea main market are Southeast Asia, the Middle East, Africa, Europe and the USA etc..

Headquarter office in Guangzhou, China. JIELV Filter welcome your contacts.

Office


Team


Meeting room

Warehouse


Our Certifications
Contact Jielvfilter
Name
Miko Wei
Tel
+86 199 2831 1392
Fax
86 20 3788 9066-614
Skype
+86 199 2831 1392
Website
www.jielvfilter.com
Add
D Block, Kehui Park, Daguan Middle Road 95, Tianhe District Guangzhou City, China.
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
