10" 20" 30" high pressure industrial sanitary water milk liquid filtration 304 316 316L stainless steel cartridge filter housing

FOB Reference Price:Get Latest Price
$80.00 - $1,200.00 / Piece | 1 Piece/Pieces (Min. Order)
Model Number:
JLFH1
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 years
After-sales Service Provided:
Video technical support, Online support
Place of Origin:
Guangdong, China
Brand Name:
Jielv
Condition:
New
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Retail, Energy & Mining
After Warranty Service:
Online support
Local Service Location:
None
Showroom Location:
None
Material:
SS304
Design flow:
6-40m3/h
O-ring:
Silicone, Viton, PTFE etc
Cartridge End:
Code 7, 226, 222, 220, etc
Application:
Industrial Water Purification
The filter length:
10, 20, 30, 40 Inch
Supply Ability
Supply Ability:
200 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Pack with a PE bag, and then put in a strong wooden box.
Port
Guangzhou
Product Description

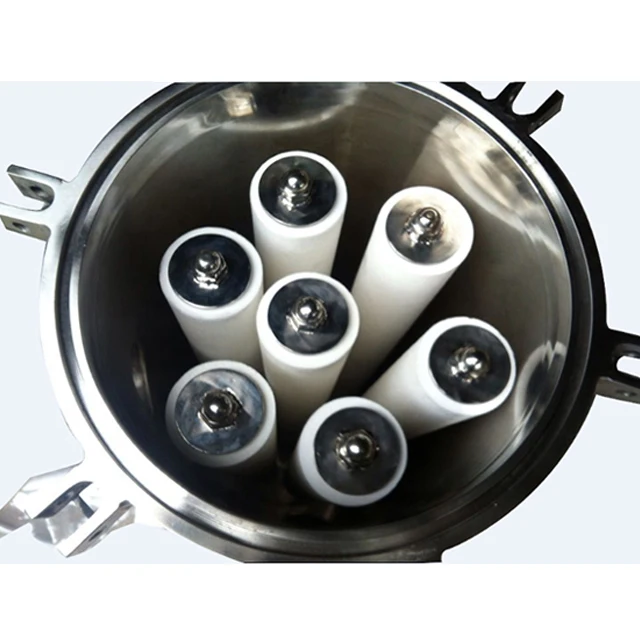

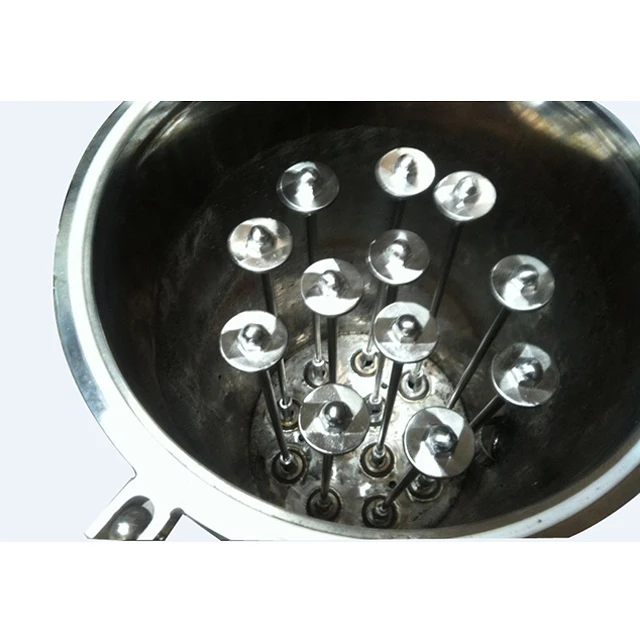

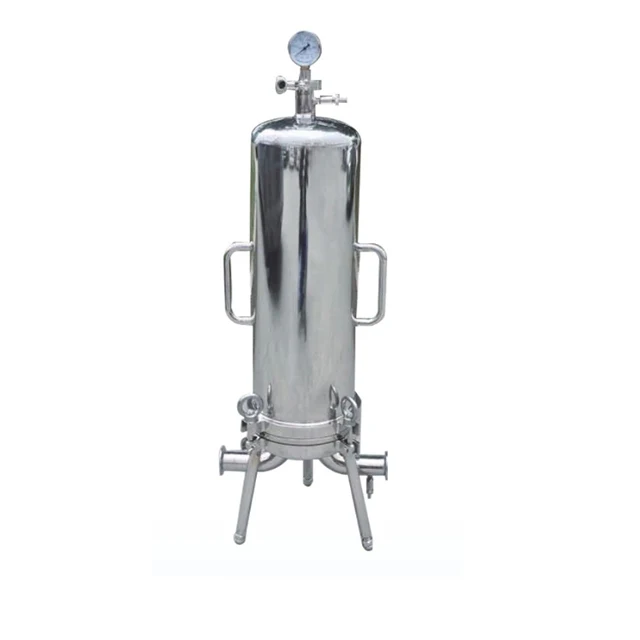

JIELV Stainless Steel Cartridge Filter Housings have special surface finish of mechanical polish, making the housings ideal choices for demanding processes requiring high purity. The smooth surface retains the lowest content of fine dust in fluid and eliminates possible contaminants while processing. With features of easy draining and clamp closure, the housings are advantaged of convenient operation and quick element change out.
Product Name
JIELV Stainless Steel Cartridge Filter Housings

Material
Housing
Housing Stainless Steel 304 and 316L for Choice
O-ring
Silicone, Viton, EPDM, etc
Surface Finish
Interior/Exterior
Electro polished, Ra≤0.2um



Connections

Inlet/Outlet
Tri clamp

1" to 10" or as your request
Flange
Thread
Vent
1/4 female
Drain
1" male or as your request
Lid/Cover Type
Swing Bolts or Tri Clamp(only for single round)
Designed Pressure
10 bar(145psi) within 30 mins
Operating Pressure
Max. 7.2 bar(108psi)
Temperature
Max. 105℃(Design 140℃)
Cartridge Adapter
220(DOE), 222, 226, etc
Applications
Applicable to the fields of food, dairy, beverage, pharmacy, cosmetic etc industry.
1) Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
2) Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
3) Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish etc.
4) Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Biological Products etc.

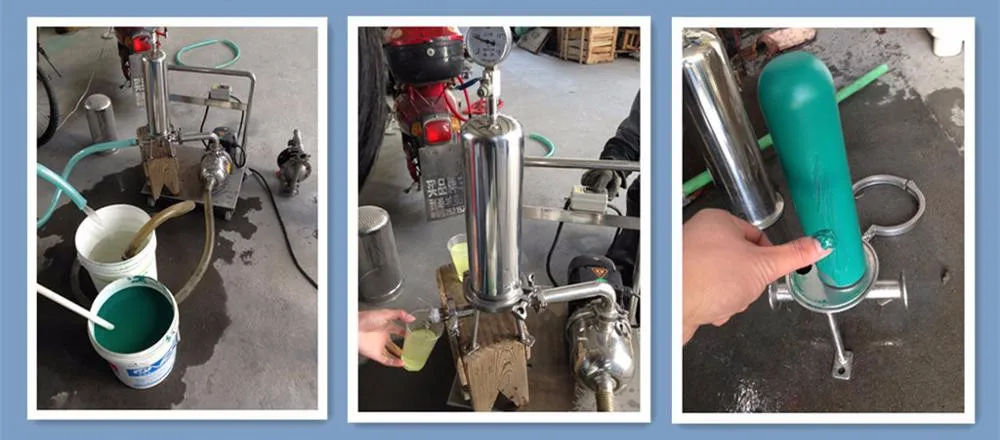

On-site Experiment
About Jielv Filter

Guangzhou Jielv Environmental Protection Co., Ltd. is famous for high-tech filtration, separation and purification, committed to provide the highest quality filtration products to meet worldwide customers various needs with excellent service.

Main Products
We have been meeting global demand with our high quality products & best possible technical support to our End-user, OEM/ODM customers. Our main business covers from liquid filtration filters: PP Melt Blown Filter Cartridges, String Wound Filter Cartridges, Membrane Pleated Cartridges, Activated Carbon Filters, Filter Bags and Filter Housing etc.; and dust filtration air filter bags: PP, Polyester, Polyester Antistatic, Polyester Waterproof & Oil Repellent Antistatic, PPS, Aromatic Polyamideimide(P84), Acrylic, Nomex, Glass Fiber, FMS, PTFE needle felt air filter bags etc., which have been widely applied into fields of Process, Pharmaceutic, Desalination, Food & Beverage, Pool & Spa, Cement Plant, Coal Fired Boiler, Iron Works, Metallurgic Plant Gas and Liquid Filtration Industrial etc....

Main Market
On the basis of the powerful technical force, standard testing equipment, strict quality-controlled systems and the excellent after-sales services, we are striving for the more new and suitable products for the customers and the market. We won the trust and good remarks of a numbers of customers because of the high quality and reasonable price. We sale 40% filters in China mainland and export 60%, oversea main market are Southeast Asia, the Middle East, Africa, Europe and the USA etc..

Our Service
1) 24-hour Response: We responds any request from our clients within 24 hours, saving your time and labor.
2) Supporting System: The system consists of claims systems, technical support system, inquiry system and ordering following system. The system will provide after-sales service in full range.
3) After-Sales Service: We have professional sales team and after-service team to solve the problem.
4) OEM Service: We provide OEM service and submit various styles, latest designs to our clients.


Headquarter office in Guangzhou, China. JIELV Filter welcome your contacts.

Office


Team


Meeting room

Workshop

Our Certifications

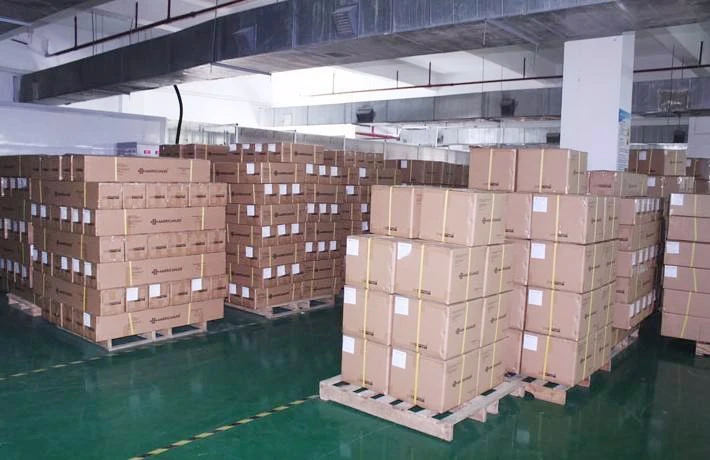

Packing & Delivery
Related Products
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
