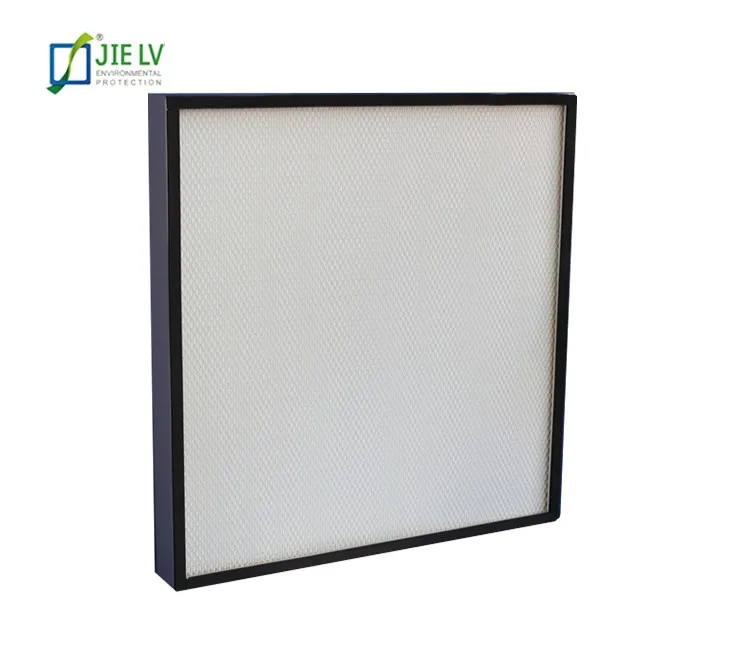

Aluminum frame High Efficiency without clapboard air Filter for clean room

FOB Reference Price:Get Latest Price
$15.00 - $55.00 / Piece | 100 Piece/Pieces (Min. Order)
Filtration Grade:
Hepa Filter
Medium Material:
Fiberglass
Model Number:
JLAF2H
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
JielvFilter
Weight:
Negotiable
Certification:
ISO9001
Efficiency:
H11 H13 H14
Construction:
Panel Filter
Dimension(L*W*H):
Customized Size
After-sales Service Provided:
No overseas service provided, No after-sales service
External Frame:
Aluminum alloy
Recommended:
600Pa
Tickness:
220mm
Temp Resistan:
70℃
Humidity:
100%RH
Warranty:
1 Year
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Bubble pack + wellpappe + stretch films + wood frame.
1.Packing with plastic
2.Packing with stretch film
3.The out packing with wood
Port
Guangzhou
Video Description
Product Description
Product Name
JL AF2H High Efficiency without clapboard air Filter
External Frame
Aluminum alloy
Material
Ultrafine fiberglass
Sealant
Polyurethane
Separator
Hot melt adhesive
Filter Plate
Injection Molding jointless polyurethane


Efficiency
H11(EN1822) 95%@MPPS(≥99%@0.3um)
H13(EN1822) 99.95%@MPPS(≥99.99%@0.3um)
H14(EN1822) 99.995%@MPPS(≥99.999%@0.3um)
HEPA
Operating Temperature
≤70℃
Humidity
≤100%RH
Applications
Low level Clean Room, Electronics Industry, Semiconductor Industry, Pharmaceutical Industry, Hospital, Food.
Model
Dimension(mm)
Material
Related Air Flow
EN799
width
height
depth
Area
(m³/h&Pa)
JL-H11wa001
305
305
69
(m²)
150/65
250/100
300/135
H11
JL-H11wa002
610
305
69
2.4
300/60
500/105
600/130
H11
JL-H11wa003
610
610
69
4.8
600/60
1000/105
1200/130
H11
JL-H11wa004
475
475
69
9.7
365/60
610/105
730/130
H11
JL-H11wa005
610
914
69
5.2
900/60
1500/105
1800/130
H11
JL-H11wa006
610
1220
69
14.6
1200/60
2000/105
2400/130
H11
JL-H13wa007
610
1220
69
19.5
1200/115
2000/195
2400/235
H13
JL-H14wa007
610
1220
69
19.5
1200/140
2000/190
2400/240
H14

Product Advantage

Jielvfilter air Filters use high quality filter element to trap the airborne dust and dirt, including particles as small as a grain of sand and provide longer lasting engine protection.

1.High Quality Control air filter
2.Rapidly delivery
3.Sufficient capacity supply of air filter
4.Customer's Designs and Logos on air filter boxes are welcome
5.Favorable price of air filter
6.Vireaty of Designs are allowed
7.Small Order of air filter are Acceptable
8. air filter OEM Accepted


Application:
High level Clean Room, Electronics Industry, Semiconductor Industry, Pharmaceutical Industry, Hospital, Food.

Cautions:
1.The pleated filter surface and septum must be in a vertical direction.
2. Please read and strictly follow the "Installer" before installation and use.
