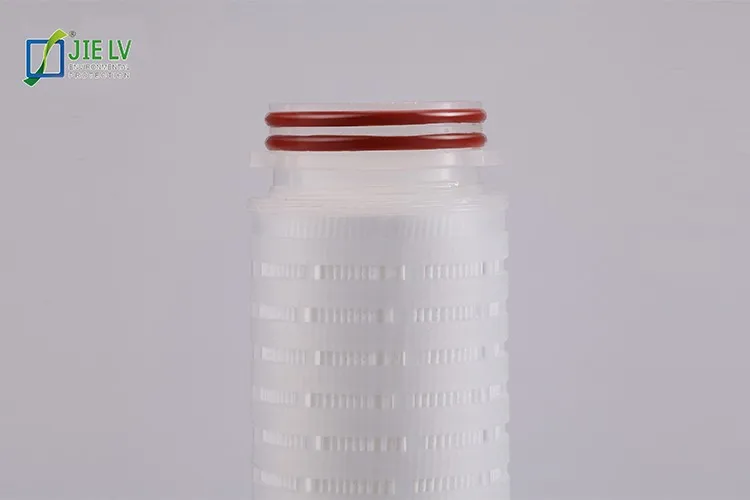

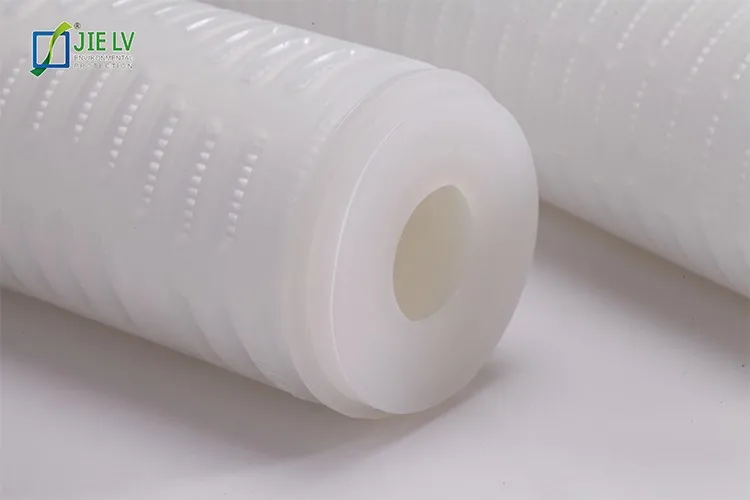

PP/PES Pleated Membrane filter cartridges for wine/beer

  • 1 - 999 Pieces
    $2.50
  • >=1000 Pieces
    $1.80
Model Number:
JLFC1
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Warranty:
Unavailable
Place of Origin:
Guangdong, China
Brand Name:
Jielv Filter
Material:
plastic bag+box+carton, PP/pes
Micron rating:
0.1~50μm
keyword:
Liquid filter cartridge
Length:
10'', 20'', 30'', 40"
Diameter:
OD: 63-69mm ID:28~30mm
Operating temperature:
≥60℃
Application:
Water Purification
Certification:
ISO9001
After-sales Service Provided:
No after-sales service
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
10'' 50PCS/CTN 510*310*310mm
20'' 25PCS/CTN 510*310*310mm
30'' 25PCS/CTN 765*310*310mm
40'' 25PCS/CTN 1020*310*310mm
Port
Guangzhou
Product Description

Main Parameters of pleated cartridge filter:


Product name
PP/PES Pleated Filter Cartridge
Material
PP/PES
End cap
222
  226
Flat
Size
10'',   20'',   30'',   40''
Diameter
OD:63-69mm
ID:30mm
Rated
0.1, 0.22, 0.45, 1, 5, 10, 20, 30, 50μm
Operating temperature
Up to 60℃


Materials of Construction
Filter membrane
PP/PES membrane
Diversion layer
pp non-woven
External support cage
pp material
Internal support
pp material or pp stainless liner

Specification
OD
60-69mm
ID
28-30mm
length
10-40"
Seal ring
Silicone,EPDM ,Nitrile ,Fluorous ,Fluorous and PTFE
Precision(μm)
0.10, 0.20, 0.45, 1.00, 3.00, 5.00, 10.0, 20.0, 40.0, 50.0µm
Effective filtering
Dimension≥0.60m²


Operation condition
PH value
1~14
Normal working temperature
≤55℃
Max. working temperature
80℃, pressure differential ≤0.10Mpa
Max. differential pressure
25℃,forward direction 0.42Mpa,reverse direction 0.21MPa

Educt
Esotoxin
<0.25EU/ml
Extractive
<0.03g/10"filter cartridge

Features and Benefits:
1. Graded density ultra fine polypropylene membrane filter, could provide absolute rating filtration;
2. Pleated depth media for high flow rate and maximum dirt holding capacity;
3. 100% polypropylene construction offers broad chemical compatibility;
4. High retention efficiency provide excellent protection of downstream filters;
5. No fiber migration into the process fluid.

Applications of pleated cartridge filter:
1. Paints & lacquer industry
2. Wastewater treatment
3. Pharmaceutical industry
4. Food industry
5. Chemical industry
6. Beer, wine & spirit industry
7. Electronics industry



More information of pleated cartridge filter:
Port of shipment of pleated cartridge filter : Guangzhou
The payment of pleated cartridge filter : We prefer T/T and L/C
The sample of pleated cartridge filter : We can provide the sample of fish tank filter for free, but customer have to pay for the freight.
We provide the high quality pleated cartridge filter at the competitive price. Thepleated cartridge filter could be customized made.
For more information about pleated cartridge filter, please contact us.

Any questions of fish tank filter and the liquid housing, pls kindly let us know anytime!

Production Process
Packing & Delivery
About Jielvfilter

Guangzhou Jielv Environmental Protection Co., Ltd. is famous for high-tech filtration, separation and purification, committed to provide the highest quality filtration products to meet worldwide customers various needs with excellent service.

Main Products
We have been meeting global demand with our high quality products & best possible technical support to our End-user, OEM/ODM customers. Our main business covers from liquid filtration filters: PP Melt Blown Filter Cartridges, String Wound Filter Cartridges, Membrane Pleated Cartridges, Activated Carbon Filters, Filter Bags and Filter Housing etc.; and dust filtration air filter bags: PP, Polyester, Polyester Antistatic, Polyester Waterproof & Oil Repellent Antistatic, PPS, Aromatic Polyamideimide(P84), Acrylic, Nomex, Glass Fiber, FMS, PTFE needle felt air filter bags etc., which have been widely applied into fields of Process, Pharmaceutic, Desalination, Food & Beverage, Pool & Spa, Cement Plant, Coal Fired Boiler, Iron Works, Metallurgic Plant Gas and Liquid Filtration Industrial etc....

Main Market
On the basis of the powerful technical force, standard testing equipment, strict quality-controlled systems and the excellent after-sales services, we are striving for the more new and suitable products for the customers and the market. We won the trust and good remarks of a numbers of customers because of the high quality and reasonable price. We sale 40% filters in China mainland and export 60%, oversea main market are Southeast Asia, the Middle East, Africa, Europe and the USA etc..

Headquarter office in Guangzhou, China. JIELV Filter welcome your contacts.

Office


Team


Meeting room

Warehouse


Our Certifications
Contact Jielvfilter
Name
Shelly Lee
Tel
+86 15018457132
Fax
86 020 3788 9066
Skype
shelly0258
Website
www.jielvfilter.com
Add
D Block, Kehui Park, Daguan Middle Road 95, Tianhe District Guangzhou City, China.
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
